Duroxite® 100 Pipe
Wear Pipe Overlay Pipe Hardfacing Pipe Abrasion Resistant Pipe Steel Pipe Clad Pipe Chromium Carbide Pipe Weld Overlay Pipe Wear-Resistant Pipe High-Strength Pipe Chromium Carbide Overlay Pipe Hardfaced Steel Pipe Mining Wear Pipe Toughened Steel Pipe Structural Wear Pipe Heat-Resistant Pipe Dual Metal Wear Pipe Lined Pipe
Duroxite® 100 Pipe is a high-performance, abrasion-resistant hardfacing pipe designed for use in demanding environments. It features a chromium-rich overlay that enhances its wear resistance, making it ideal for various industries. This hardfacing pipe is engineered for superior wear resistance in the harshest conditions. Duroxite® 100 Pipe comes with options for double or multiple overlay passes. It can be hardfaced on Schedule 40 and Schedule 80 steel pipes, as well as tubing. The overlay pipe can be customized into various shapes, including square-to-round transitions, elbows, T or Y fittings or long sweeps.
Key Benefits
- Consistent wear resistance from the surface to 75% of the overlay.
- Optimal carbide composition for a balanced combination of wear resistance and uniform bonding.
Typical Applications
Duroxite® 100 Pipe is commonly used across industries such as mining, cement, oil sands, dredging, recycling and steel production. Specific applications include:
| Mining, Cement, Oil Sands | Slurry pumps, chutes |
|---|---|
| Dredging | Dredging pipes |
| Recycling | Cullet glass |
| Steel | Air ducts, carbon injection pipes, suction lines, troughs |
Standard Dimensions
| Metric unit | Metric unit | Other Custom Specifications |
|---|---|---|
|
50 – 150 mm 200 – 600 mm 600 – 900 mm |
0.9 – 1.0 m 0.9 – 3.0 m 1.8 – 3.0 m |
– All available gauges > Schedule 40 steel pipe – Lengths cut or fabricated as needed – Stainless steel and other pipe grades available – Custom diameters, lengths and gauge sizes are available upon request. – Diameters larger than 0.9 m can be fabricated from formed Duroxite® 100 plate. |
Mechanical Properties
| Number of overlay passes | Typical surface hardness1) (HRC) | Typical surface hardness1) (HV) | Surface (g max) |
75 % depth of overlay 3) (g max) |
|---|---|---|---|---|
| Double or multiple | 59 – 64 | 675 – 800 | 0.18 | 0.18 |
1) Surface hardness is measured on machined flat surface just below overlay surface.
2) ASTM G65 – Procedure A weight loss, is a standard test measuring sliding abrasion resistance using a dry sand/rubber wheel apparatus. ASTM G65-Procedure A is the most severe test method.
3) ASTM G65 – Procedure A weight loss, wear test is conducted at 75% depth of the overlay materials to ensure consistently good wear resistance from the top surface through to the depth of 75% of the overlay.

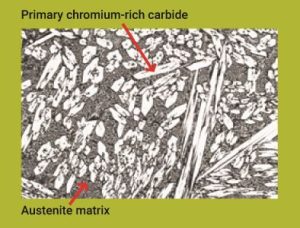

Microstructure
The microstructure of Duroxite® 100 Pipe consists of a high percentage of extremely hard primary M7C3 chromium-rich carbides, typically with a hardness of 1700 HK*, evenly distributed within a ductile eutectic austenite matrix. The volume fraction of primary carbides ranges from 30 to 50%, ensuring an optimal balance of wear resistance and uniform bonding.
*) HK is the Knoop microhardness used primarily for very brittle materials.
Fabrication and Other Recommendations
Welding, cutting, forming and machining
Workshop recommendations are available in the Duroxite® overlay brochure, or you can reach out to your technical support representative for further details.
Safety precautions
Welding or cutting Duroxite® products generates gases and harmful fumes that are chemically complex and challenging to categorize. The primary toxic element in these fumes is hexavalent chromium. It is recommended to use proper exhaust ventilation systems, fume-extraction torches, and appropriate protective clothing and respiratory protection for operators.
