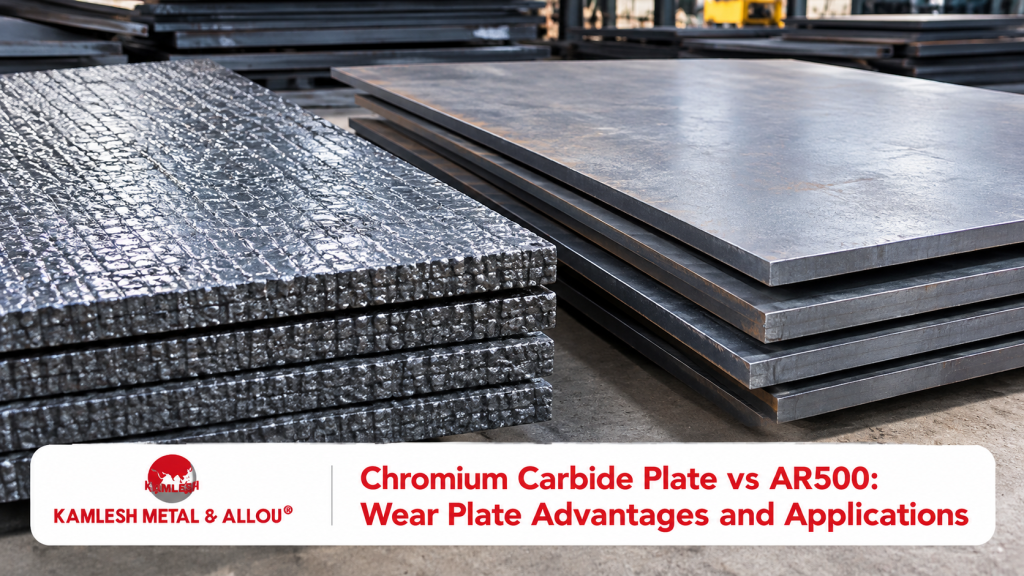

Abrasion wears down mining, cement, and material-handling equipment faster than almost any other failure mode. Chutes crack and hoppers thin out in months when the wrong plate is fitted. Chromium carbide plate and AR500 come up constantly in these discussions, resisting wear through different construction. This article compares their characteristics, advantages, and typical applications.
What Is a Chromium Carbide Plate?
A chromium carbide plate is a wear-resistant plate built for severe abrasive service. It consists of a hardfacing overlay bonded to a mild steel base plate, with the overlay carrying a dense network of chromium carbides formed during deposition. The base provides structural support; the overlay takes the abrasive contact.
These carbide particles resist cutting and gouging far better than plain steel, protecting surfaces exposed to ore, sand, and coal.
What Is an AR500 Wear Plate?
AR500 is an abrasion-resistant steel plate with a nominal hardness classification of approximately 500 HBW. It is through-hardened rather than overlay-built, so wear resistance runs across the full thickness.
Fabricators select AR500 where hardness and abrasion resistance both matter, particularly under impact loading. Performance varies by grade, hardness range, thickness, and manufacturing specification, not hardness alone.
Chromium Carbide Plate vs AR500: Key Differences
The two materials differ mainly in construction and the wear mechanism they resist.
| Selection Factor | Chromium Carbide Plate | AR500 Plate |
| Basic Construction | Wear-resistant overlay on a base plate | Through-hardened abrasion-resistant steel |
| Primary Wear Focus | Severe abrasive wear | Abrasion and impact resistance |
| Wear Surface | Chromium carbide-rich overlay | Hardened steel surface |
| Fabrication | Application and product dependent | Application and product dependent |
| Selection | Severe abrasion-focused applications | Abrasion and impact applications |
Actual performance depends on the specific product, thickness, dominant wear mechanism, and operating environment.
Wear Resistance Advantages of Chromium Carbide Plate
Resistance to Severe Abrasion
Chromium carbide overlays resist sliding abrasion from ore, sand, and mineral fines, so material-handling equipment relies on them heavily.
Extended Wear Surface Performance
The overlay absorbs abrasive contact before it reaches the base plate, protecting the equipment underneath without a fixed service-life guarantee.
Suitable for Localised Wear Protection
Panels can be cut and fitted onto high-wear zones like chute walls, giving replaceable protection at specific contact points.
Advantages of AR500 Wear Plate
High Surface Hardness
Higher hardness generally improves abrasion resistance, though hardness alone does not determine whether a plate suits a given application.
Resistance to Abrasion and Impact
AR500 handles combined abrasive and impact loading reasonably well, though suitability depends on the equipment’s operating conditions.
Structural Wear Applications
Because AR500 is through-hardened, fabricators select it for components needing wear resistance across the full material thickness.
Applications of Chromium Carbide Plates
Mining and Mineral Processing
Chutes, liners, and hoppers exposed to abrasive ores depend on chromium carbide overlays for wear protection.
Cement and Aggregates
Wear surfaces on material transfer equipment face constant contact with abrasive raw materials.
Power and Bulk Material Handling
Equipment handling abrasive ash and minerals needs wear protection matched to the material’s abrasiveness.
Recycling and Heavy Processing
Repeated abrasive contact in recycling lines makes overlay-protected components a common choice.
Where Is AR500 Commonly Used?
AR500 shows up across mining and heavy equipment components, material handling equipment, and fabricated wear-resistant liners, particularly where abrasion combines with impact loading. Unlike chromium carbide overlays, which concentrate resistance at the surface, AR500 carries it through the plate thickness.
How to Choose Between Chromium Carbide Plate and AR500
Selection should start with identifying the actual wear mechanism, not marketing claims. Consider abrasion severity, impact loading, component geometry, plate thickness, fabrication needs, and the operating environment. A proper wear analysis gives a more reliable basis than hardness numbers alone.
Fabrication and Installation Considerations
Cutting and machining requirements differ depending on whether the plate is overlay-built or through-hardened. Welding procedures must match the construction, since the two do not weld identically. Account for distortion and follow the manufacturer’s recommendations rather than generic steel welding practices.
Quality and Performance Verification
Verify plate identification and specification against what was ordered. Confirm thickness and dimensional tolerances, and review hardness requirements where applicable. For chromium carbide plates, check overlay characteristics too. Review Material Test Certificates and confirm traceability, especially where a mismatch means the wrong grade in service.
Conclusion
Chromium carbide plate and AR500 both resist wear, but through different construction. Chromium carbide plate suits severe abrasive wear where an overlay surface takes the contact, while AR500 fits applications combining abrasion with impact loading. The right choice comes from evaluating the actual wear mechanism, not picking whichever plate sounds tougher. Kamlesh Metal & Alloy stocks Hardox® wear plates and chromium carbide overlay products with mill certification attached, so fabricators can verify specifications before the plate reaches the workshop. Request a quote for chromium carbide plate with your thickness and grade requirements.
