In Tunnel construction, Rock Bolts are essential for ensuring rock mass stability surrounding the excavation. They help prevent rockfalls, support tunnel walls, and enhance overall safety. This article delves into the various types of rock bolts commonly used in tunnels, highlighting their unique features and applications.
Fully Grouted Rock Bolts
Fully Grouted Rock Bolts are crucial for tunnel stabilization, offering robust reinforcement in unstable conditions. Installed in pre-drilled holes and surrounded by cement-based grout, these bolts create a solid bond with the surrounding rock as the grout hardens. This ensures excellent load transfer and stability. They are particularly effective in high deformation zones, where significant rock movement or instability is expected, and in fractured rock, where they provide a strong connection and reinforcement in weak or broken rock formations. These features make fully grouted rock bolts essential for maintaining structural integrity in challenging environments.
Mechanically Anchored Rock Bolts
Mechanically Anchored Rock Bolts, or expansion bolts, utilize a mechanical anchor that expands when tightened, eliminating the need for grouting. This feature allows for faster installation than fully grouted bolts, but they may provide less load transfer. They are ideal for projects where quick and efficient bolting is required. They are best suited for stable rock conditions where the rock is solid and less prone to displacement. Their rapid installation process makes them a practical choice for projects with time constraints and stable rock formations.
Resin-Injection Rock Bolts
Resin-Injection Rock Bolts use a resin mixture to create a strong bond between the bolt and the surrounding rock. After the bolt is inserted into a resin-filled hole, the mixture hardens, forming a stable connection. This method is particularly effective in challenging conditions where traditional grouting may fail, such as in unstable or wet rock environments. Resin-injection bolts are ideal for situations requiring high-strength support, offering robust reinforcement when conventional methods are insufficient. This makes them a reliable choice for projects facing moisture or instability issues.
Self-Drilling Rock Bolts

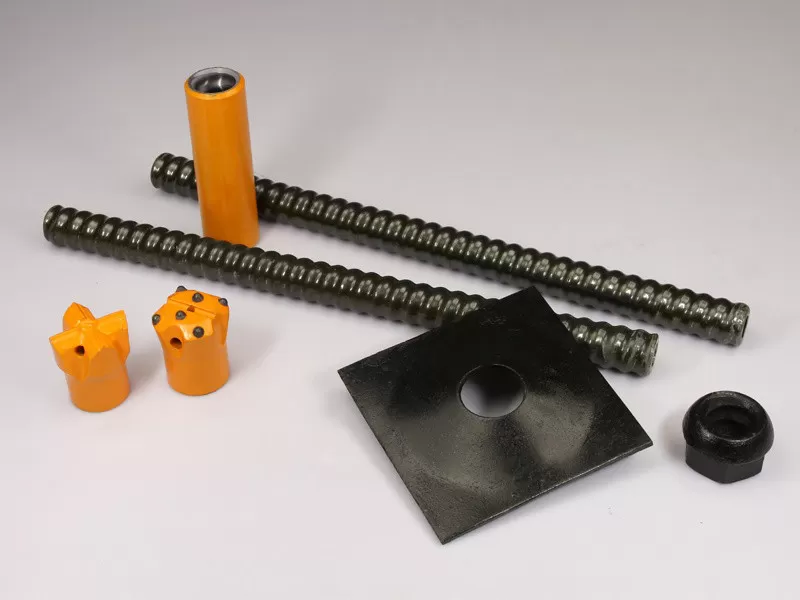

Self-Drilling Rock Bolts combine drilling and bolting into a single process. Equipped with a built-in drill bit, these bolts can be installed without pre-drilling, streamlining the installation process. Once in place, they can be grouted or mechanically anchored for additional stability. This makes them ideal for projects requiring quick and efficient installation, particularly in confined spaces with limited access or challenging working conditions.
Cable Bolts
Cable Bolts feature multiple steel cables bundled together, providing high-strength reinforcement. Installed in pre-drilled holes, they can be either grouted or mechanically anchored. They are particularly beneficial for large-scale tunnel projects and extensive excavations that demand substantial support. They are suitable for high-load areas and high-stress environments where robust reinforcement is essential.
Conclusion
Choosing the right Rock Bolt type is key for tunnel safety and stability. Fully grouted bolts excel in unstable rock, mechanically anchored bolts offer quick installation in stable conditions, and resin-injection bolts handle challenging environments. Self-drilling bolts enable fast deployment, while cable bolts provide high strength for large projects.
