Rock bolts function as essential components to stabilize rock surfaces throughout construction sites mining facilities and tunnelling projects. Rock formations achieve protection from collapse through their structural reinforcement properties. Installation methods for rock bolts directly determine their operational performance. The guide provides detailed instructions for performing safe rock bolt installations.

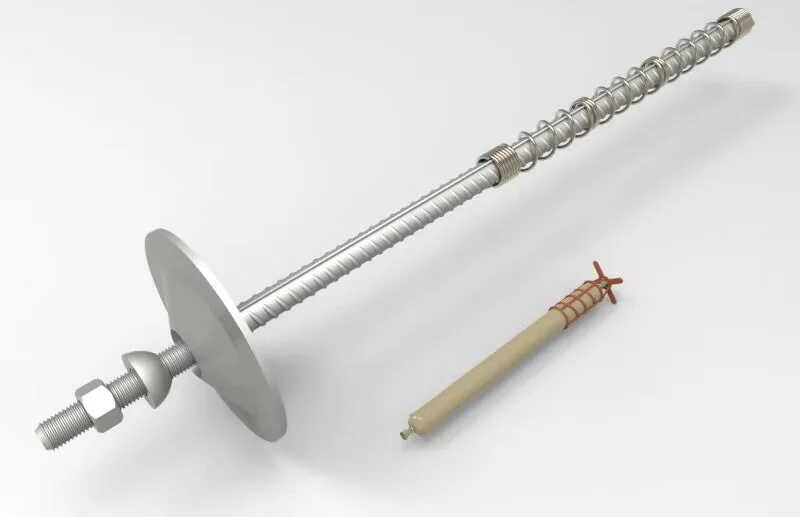

What Are Rock Bolts?
Rock masses receive stabilization through the application of long steel rods named rock bolts. The installation of rock bolts creates a stabilization system which anchors loose rock layers to stable sections while distributing loads evenly and stopping rockfalls. The mining industry together with tunnelling operations road excavation sites and construction sites use these bolts to provide rock reinforcement.
Step-by-Step Installation Guide
1. Site Inspection and Safety Preparation
A complete site inspection for rock conditions must be performed before starting rock bolt installation. Evaluate areas prone to weakness and determine bolt placement locations. All workers must wear personal protective equipment (PPE) including helmets gloves and goggles and high-visibility clothing.
2. Marking Drill Points
Technical guidelines help engineers determine the exact positions for rock bolt installation. Uniform reinforcement and structural balance depend on proper spacing between elements.
3. Drilling the Hole
A rock drill operator should make holes at each marked position. The hole needs to have dimensions that correspond exactly to the measurements of the rock bolts that will be inserted. A clean hole free of loose debris must exist because such material could reduce bolt anchorage performance.
4. Inserting the Rock Bolt
Carefully insert the rock bolt into the drilled hole. Depending on the type of rock bolt (mechanical, resin-grouted, or friction), the installation process may vary:
- Mechanical Rock Bolts: Expand the bolt head against the rock by tightening the nut.
- Resin-Grouted Rock Bolts: Inject resin or cement grout into the hole before inserting the bolt.
- Friction Rock Bolts: Slide the bolt into the hole, allowing it to grip the rock surface tightly.
5. Securing and Tensioning the Bolt
After insertion tighten the bolt with a torque wrench or hydraulic tensioner to achieve proper security. Appropriate bolt tensioning improves both the load-carrying ability and long-term stability of the bolt.
6. Quality Checks and Load Testing
After installation, conduct a pull test to verify the bolt’s strength and stability. The testing procedure verifies that the bolt maintains sufficient strength to operate according to design requirements.
7. Final Inspection and Safety Measures
Perform a final check to confirm all bolts are properly installed and secured. Scheduled inspections together with maintenance activities must be performed to track the extended operational performance of rock bolts.
Safety Tips for Rock Bolt Installation
Always follow manufacturer guidelines for bolt specifications and installation procedures.
- The correct drilling tools must be used while keeping drill bits sharp.
- Ensure proper ventilation in confined spaces to prevent exposure to harmful dust and fumes.
- Rock bolts must never receive loads that exceed their engineering specifications.
- Conduct periodic safety training for workers involved in rock bolt installations.
Conclusion
The safe installation of rock bolts demands thorough preparation alongside exact execution along with strict adherence to safety protocols. These steps lead to improved rock formation stability while establishing a protected workplace environment. Rock bolts are installed properly and regularly maintained to enhance the extended lifespan of tunnels mines and construction projects.
You can achieve optimal rock bolt performance levels together with project safety excellence through the implementation of these best practices.
